Features
Equipped with LED external display. During bar feeding, various messages such as "barlength","bar change",feeder error", and "CNC lathe error" are more easily shown,permitting remote momitoring.(Patented)
Mitsubishi PLC fata bank. Feeding position, torque and speed are accurately and perfectly interfaced with lathes.
Full size guide channel, easy quick change and less noise
Remote control greatly increases convenience as user friendly
Easy adjusting“ V type ”anti-vibration, without change-over.
A beefed-up clamping structure.
Multi-function features with Human-machine-interface display.Friendly user.
Silent load, free vibration, smooth load, servo motor.
Specifications
| Model |

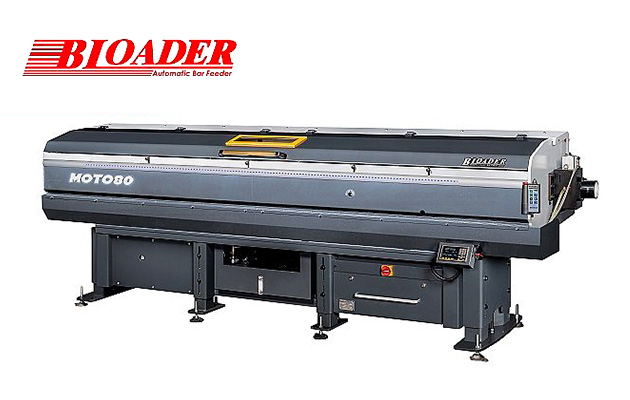

MOTO-65/80
|
| Bar Diameter |
10 - 80 mm
|
| Bar Capacity |
10 mm / 36pcs
|
| Transmission |
SERVO MOTOR
|
| Machine Weight |
3.0M - 2100 KG / 3.6M - -2600 KG
|
| Lubricant |
FK ISO VG68 FK HYDRAULIC OIL 68
|
| Power Supply |
3φ x 220V 50/60Hz
|
| Power Consumption |
2000W
|
| Air Pressure |
6 kgf / cm² 70psi
|
