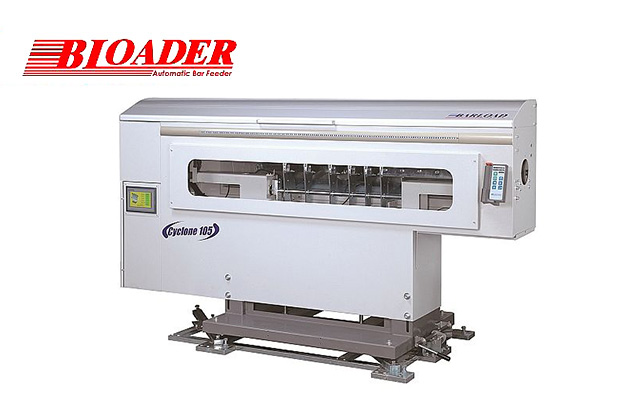

BK105 Servo Motor Drive Short Bar Feeder

https://www.barload.com/web/image/product.template/19/image_1920?unique=1b95071
  • Increase productivity and reduce manufacturing costs.
  • No vibrations allow precision machining at high speed.
  • Stronger mechanical design, max bar diameter up to 105mm.
  • The servo feeding system permits an accurate positioning bar without a turret stopper.
  • Adjusting free when bar diameter changes.
  • External LED displays easily monitor feeding and alarm situations.

    This combination does not exist.



    FeaturesSpecifications

    Features

    A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).

    An optical sensor top-cut system features speedy and accurately.

    A HMI system with touch screen as user-friendly.

    Quickly pusher change-over.

    Magazine capacity max size up to 105mm bar x 5 pcs. Movable rail with X axis or Z axis device as optional allowing an easy job on spindle maintenance / service.

    A PLC control features stable software applications interfacing with various CNC lathe source.

    Specifications

    Model BK105，BK105L
    Bar Length
    		 1100mm ，1600mm，depends on entire spindle length.
    Machine Weight
    		 600KG ， 700KG
    Bar Diameter
    		 8mm-105mm
    Bar Capacity
    		 105mm / 5 pcs
    Power Supply
    		 220V
